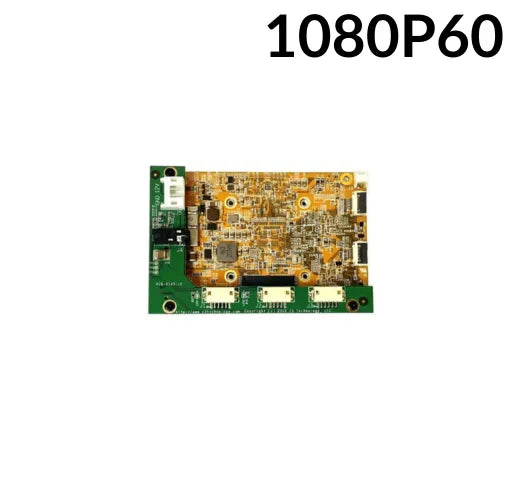

Z3 Technology FV2K-15A Lightweight Dual Camera Encoder for Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV HD Block Cameras & Boson IR Cameras
Z3 Technology FV2K-15A Lightweight Dual Camera Encoder for Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV HD Block Cameras & Boson IR Cameras
Couldn't load pickup availability
FV2K-15A Spec Sheet
The Z3 Technology FV2K-15A Dual Camera Encoder is engineered for seamless integration with Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV HD Block Cameras, and Boson IR Cameras, tailored for UAV, inspection, surveillance, industrial, and custom applications. This compact and lightweight system allows dual-camera operation with both visible and infrared cameras, ensuring versatility for a wide range of environments. It supports both H.265 and H.264 video encoding in HD resolutions, including 1080p at up to 60fps, and streams over IP with simultaneous recording to micro SD.

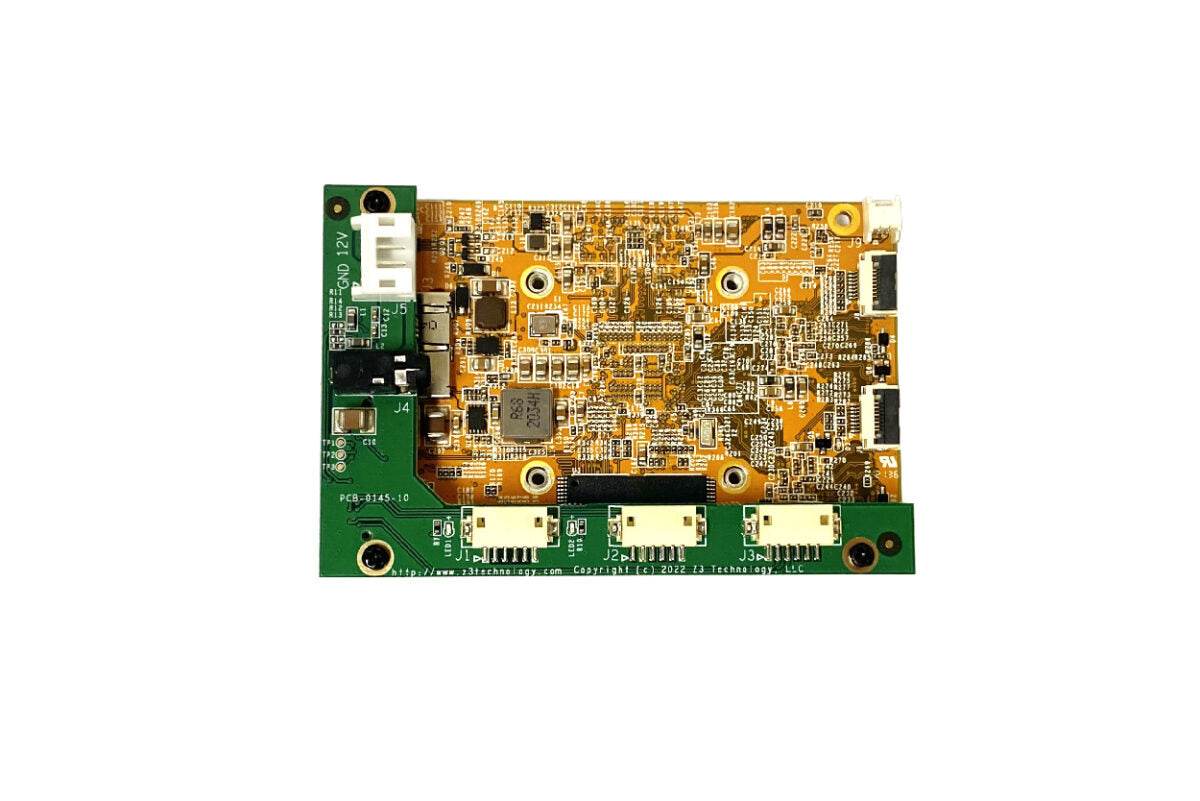

The system integrates easily with LVDS and composite cameras, offering dual LVDS camera input or LVDS plus composite input. The encoder board measures 75 x 50 x 33mm and weighs just 61g (without the aluminum heat pipe). It operates efficiently with a low power consumption of only 4.5 watts while encoding two cameras. The FV2K-15A features full support for SRT encryption and modes, including Caller, Sender, and Rendezvous, making it ideal for secure, real-time video transmission.
Features:
- Dual LVDS camera input, or LVDS plus composite input
- H.265, H.264, and MJPEG video encoding
- Encoding resolutions: 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF, QVGA
- Outputs: RTP, RTSP, MPEG-2 TS, RTMP, MP4, and TS-file
- Micro SD recording support
- 100 Mbps Ethernet, Micro-HDMI Passthrough, Composite Output, LVTTL UART x 2, GPIO x 2
- ONVIF Profile S & T compliance
- Easy-to-use HTTP-based control interface
- Low power consumption (4.5W during dual camera operation)
Applications:
- UAV and drones
- Inspection and surveillance
- Safety and security
- Industrial applications
- Customized video solutions
Visible Camera Formats | Sony FCB-EV9520, FCB-EV9500L, LVDS |
HD and SD IR Formats | LDVS |
Recording | To Micro SD |
Additional Interfaces | 100 Mbps Ethernet, Micro-HDMI Passthrough, Composite Output, LVTTL UART x 2 , GPIO x 2, Micro-SD card |
Video Codecs | H.265, H.264, MJPEG |
Encoding Resolutions | 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA |
Output Formats | RTP, RTSP, MPEG-2 TS, RTMP, TS-RTP, MP4, and TS-file |
Features | • Lightweight, Low Latency, Low Power • Ability to Resize HD Camera Input to Lower Resolutions Keeping Full Field of View •SRT Modes Supported: Caller, Sender, Rendezvous & SRT Encryption • Pass Visca Camera Control Commands over IP • Easy-to-Use HTTP-Based Control Interface • ONVIF® Profile S & T* • Compatible with ZEUS® DMD-4K Video Decoder |
Encoder Board Size | 75 x 50 x 33mm (2.95 x 1.97 x 1.30 in) |
Encoder Board Weight | 61g (aluminum heat pipe is additional 42g) |
Power Consumption | 12V Power, Typical power consumption is 4.5w while encoding 2 cameras with H.265 video at 1080p30 |
