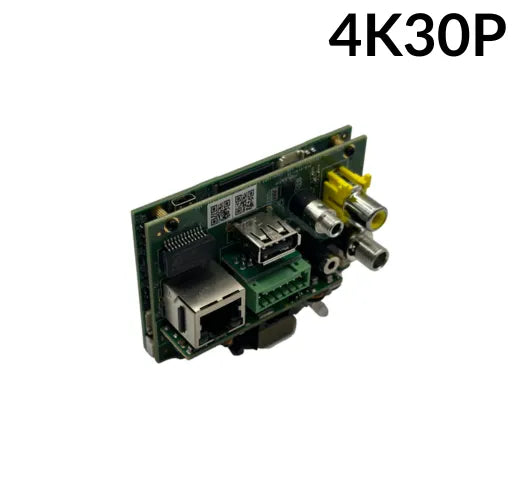

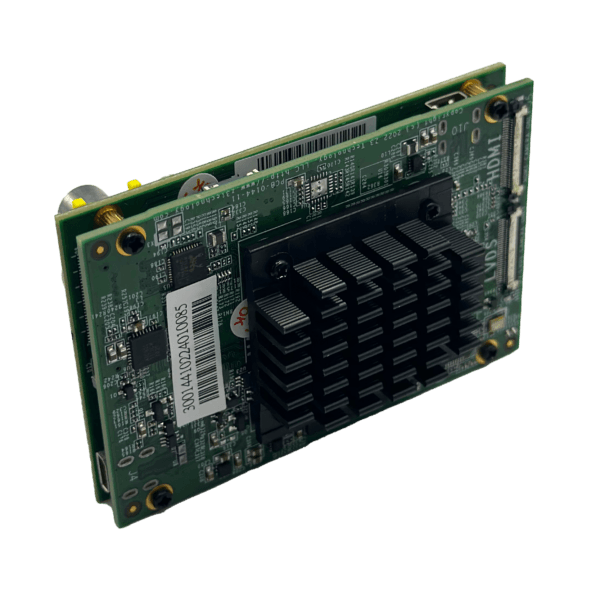

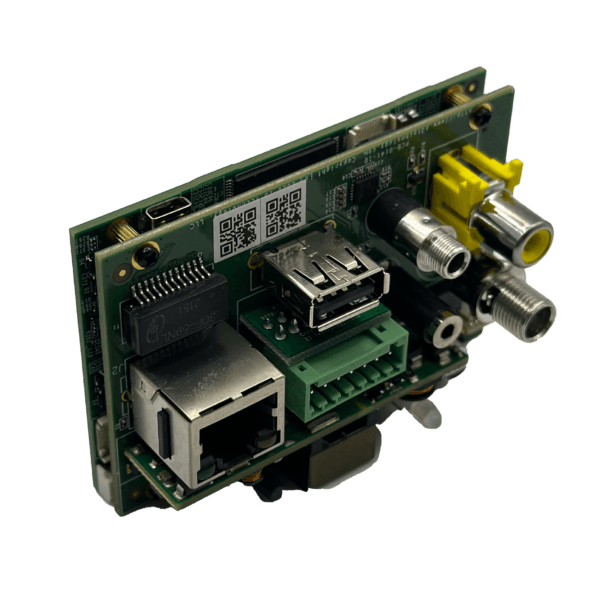

Z3 Technology FV4K-13A 4K HDMI & Thermal Encoder for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras
Z3 Technology FV4K-13A 4K HDMI & Thermal Encoder for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras
Couldn't load pickup availability
FV4K-13A Spec Sheet
The Z3 Technology FV4K-13A 4K HDMI & Thermal Encoder delivers powerful performance for industrial and machine vision applications, specifically designed for Sony FCB-ER9500 and FCB-ER8530 4K Block Cameras. This advanced encoder supports 4K HDMI and Thermal LVDS encoding with exceptional resolution flexibility, including 4Kp30, 1080p60, and other HD/SD formats. It enables simultaneous streaming and recording via Gigabit Ethernet (GbE) with Power over Ethernet (PoE) or DC input, making it ideal for high-demand environments like aerospace, defense, and robotics.
Equipped with H.264, H.265, and MJPEG codec support, the FV4K-13A provides superior video compression for efficient bandwidth management. It includes dual display mode, picture-in-picture support, and real-time video preview through an intuitive HTTP/HTTPS web GUI. The encoder also overlays GPS or NTP data for real-time positioning, with built-in timestamping and KLV metadata for accurate mission tracking.
The Z3 Technology FV4K-13A is ONVIF Profile S and T compliant, ensuring seamless integration with existing surveillance, unmanned systems, and industrial setups. It integrates with multiple camera interfaces such as HDMI, Micro-HDMI, and Composite NTSC/PAL for versatile system compatibility, and supports RS-232, RS-422, RS-485 serial I/O connections. Designed for reliability in harsh conditions, the encoder is FCC, CE, NDAA, and TAA compliant, delivering exceptional quality, performance, and security.
Features:
- Video Resolutions: 4Kp30, 1080p60, 720p, NTSC/PAL, VGA, CIF, QVGA
- Codec Support: H.264, H.265, MJPEG
- Simultaneous Stream & Record: Supports multiple streams at once
- Video Interfaces: HDMI, Micro-HDMI, Thermal LVDS, Composite NTSC/PAL
- Output Formats: RTP, RTSP, MPEG-2 TS, RTMP
- Power Options: PoE or 12V DC power supply
- Form Factor: 75 x 50 x 33 mm, 85g weight
- Compliance: ONVIF Profile S/T, FCC, CE, NDAA, TAA
Applications:
- Aerospace Imaging
- Industrial Automation
- Defense Video Solutions
- Healthcare Diagnostics
- Robotics Vision Systems
- Surveillance Operations
- Unmanned Systems
| Visible Camera Formats | Sony FCB-ER8530, FCB-EW9500H and Micro HDMI |
| HD and SD IR Formats | RS170, NTSC/PAL and LVDS |
| Recording | To either USB, Micro SD or NFS |
| Additional Interfaces | GbE, Audio Input, RS-232, Micro-HDMI Passthrough, POE, Composite Output, Serial I/O (RS-232, RS-422, RS-485) |
| Video Codecs | H.265 & H.264 |
| Encoding Resolutions | 4Kp30, 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA |
| Output Formats | RTP, RTSP, MPEG-2 TS and RTMP |
| Features | • Easy-to-Use HTTP/HTTPS web GUI with live video preview • Pass VISCA™ Camera Control Commands over IP • ONVIF® Profile S and T • Simultaneous Stream and Record • Overlay of GPS or NTP Data • SRT Modes Supported: Caller, Sender, Rendezvous & SRT Encryption • Pelco D PTZ Positioning • Absolute PTZ Support • Compatible with ZEUS® DMD-4K Video Decoder • Timestamp and KLV support through overlay or SEI data |
| Encoder Board Size | 75 x 50 x 33 mm (2.95 x 1.97 x 1.30 in) |
| Encoder Board Weight | 85g |
| Power Consumption | 4.5W |
| Power Supply | 12V DC PoE 802.3af/at class 0 |
