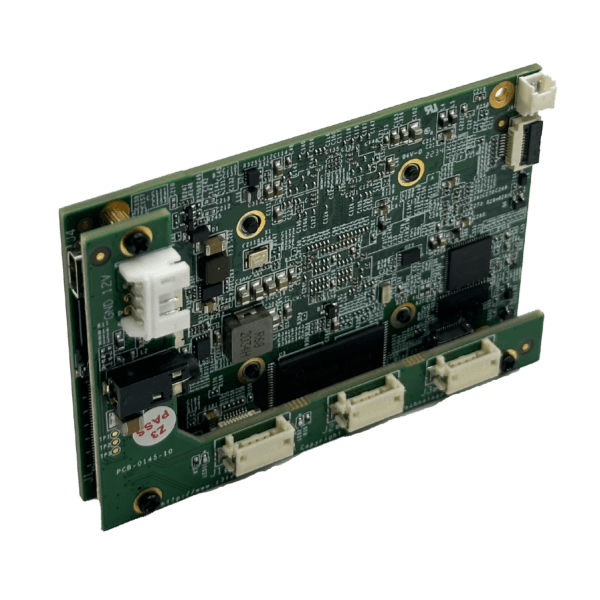

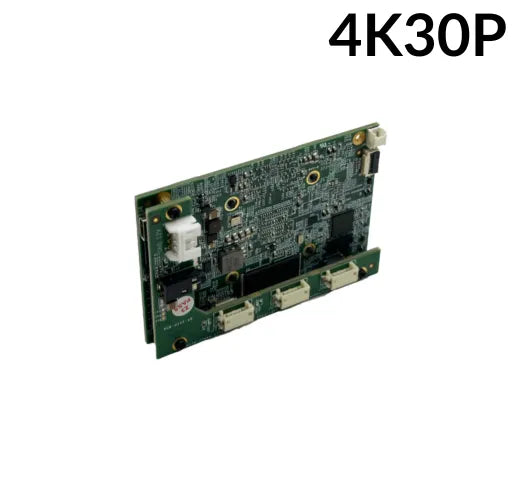

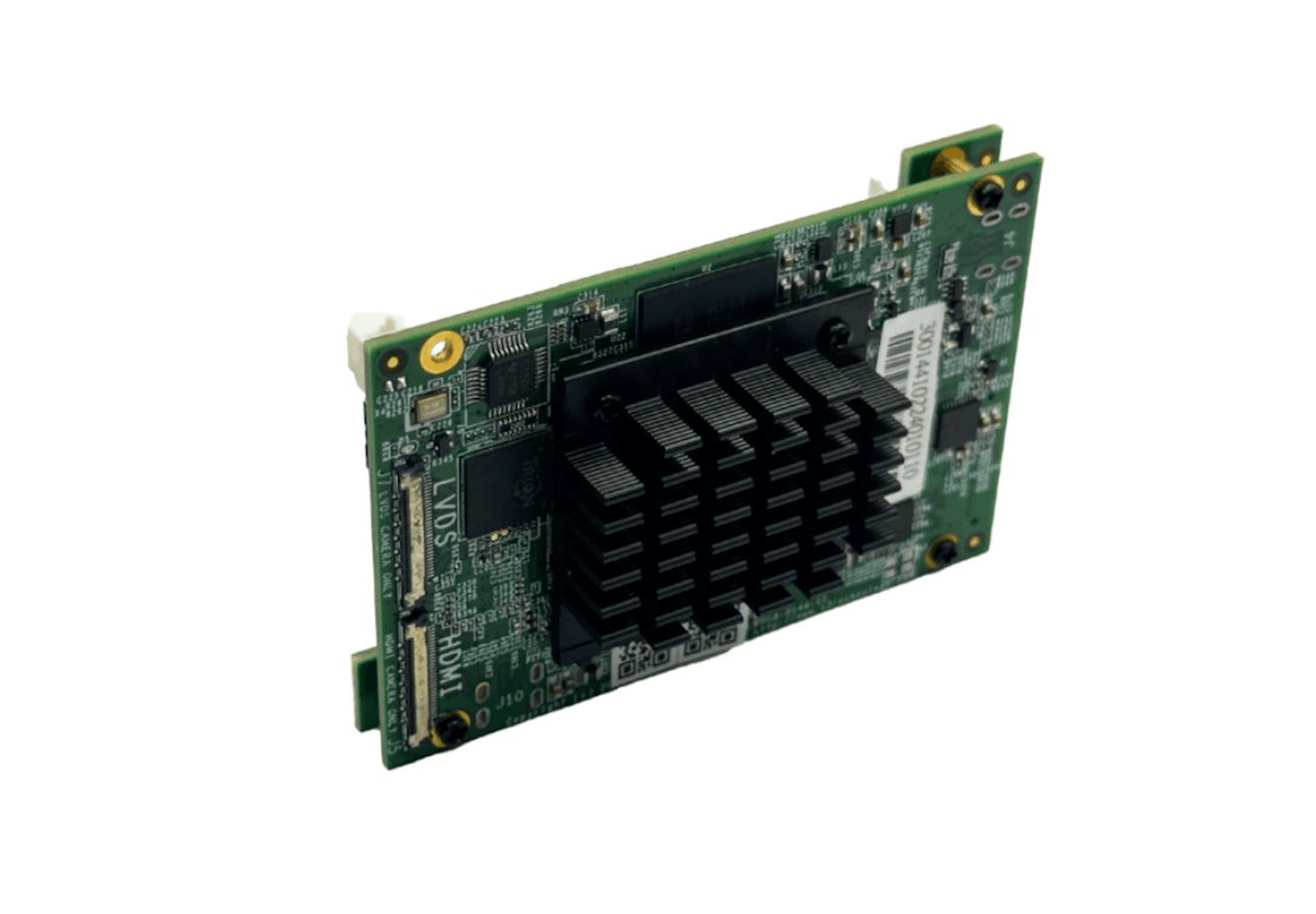

Z3 Technology FV4K-15A 4K HDMI & Thermal Encoder for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras
Z3 Technology FV4K-15A 4K HDMI & Thermal Encoder for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras
Couldn't load pickup availability
FV4K-15A Spec Sheet
The Z3 Technology FV4K-15A 4K HDMI & Thermal Encoder offers cutting-edge video encoding for high-quality, low-latency streaming and recording. Specifically designed for industrial, machine vision, and UAV applications, this encoder is compatible with Sony FCB-ER9500 and FCB-ER8530 4K Block Cameras. The lightweight, low-profile design features versatile connectivity options, including 100 Mbps Ethernet, serial ports, and power connections, enabling seamless integration into any system.
This encoder supports simultaneous video streaming and recording to NFS or Micro SD card, and offers multiple resolution options, including up to 4Kp30 and 1080p60. It integrates VISCA™ and IR camera controls over IP, providing comprehensive management of connected cameras. The built-in HTTP/HTTPS Web GUI allows for easy live video preview, while the system supports advanced features like Picture-In-Picture, dual display mode, and embedded KLV metadata.
The FV4K-15A supports a wide range of codecs (H.264, H.265, MJPEG) and output formats, including RTP, RTSP, MPEG-2 TS, and RTMP. GPS and NTP data overlays with timestamps are supported via SEI for precise geospatial tracking. Compliant with ONVIF Profile S and T, this encoder ensures broad compatibility for surveillance, defense, and aerospace applications. Its compact size and efficient 4.5W power consumption make it an ideal solution for unmanned systems (UAV, UGV, USV) and other video surveillance needs.
Features:
- 4Kp30, 1080p60, 720p resolutions
- Supports H.264, H.265, MJPEG video codecs
- Simultaneous streaming & recording to Micro SD or NFS
- VISCA™ & IR camera control over IP
- GPS/NTP timestamp overlay via SEI
- Picture-in-Picture and Dual Display Mode
- Embedded KLV metadata support
- ONVIF Profile S and T compliant
- Easy-to-use HTTP/HTTPS Web GUI with live preview
- Lightweight, compact design (75 x 50 x 13 mm, 32g)
- Low power consumption (4.5W)
- Multiple video output formats: RTP, RTSP, MPEG-2 TS, RTMP
Applications:
- Industrial & machine vision
- Aerospace video solutions
- Defense and surveillance systems
- Unmanned systems (UAV, UGV, USV)
- Robotics & automation
- Healthcare imaging & diagnostics
- Inaccessible surveillance mounts
- Video streaming & recording for remote monitoring
| Visible Camera Formats | Sony FCB-ER8530, FCB-ER9500 and Micro HDMI |
| HD and SD IR Formats | RS170, NTSC/PAL and LVDS |
| Recording | To either Micro SD or NFS |
| Additional Interfaces | 100 Mbps Ethernet, RS-232, Micro-HDMI Passthrough, Composite Output, LVTTL UART x 2 , GPIO x 2, Micro-SD card |
| Video Codecs | H.265 & H.264 |
| Encoding Resolutions | 4Kp30, 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA |
| Output Formats | RTP, RTSP, MPEG-2 TS and RTMP |
| Features | • Easy-to-Use HTTP/HTTPS web GUI with live video preview • Send VISCA and IR Camera Controls over IP with Web Gui or Serial Camera Controls • Simultaneous Streaming and Recording to NFS or Micro-SD Card • ONVIF® Profile S and T • Embedded KLV Metadata Support Via Serial, MISB 0601 Compliant • High Precision Timestamps Across Multiple Streams, MISB 0604 Compliant • Multiline text Overlay via the Web Gui or the API • Logo or Image overlay via the API • NMEA GPS Overlay • Region of Interest: Configurable Field of View |
| Encoder Board Size | 75 x 50 x 13 mm (2.95 x 1.97 x .51 in) |
| Encoder Board Weight | 32g (Heat pipe is additional 10g) |
| Power Consumption | 4.5W |
| Power Supply | 12V Power |
