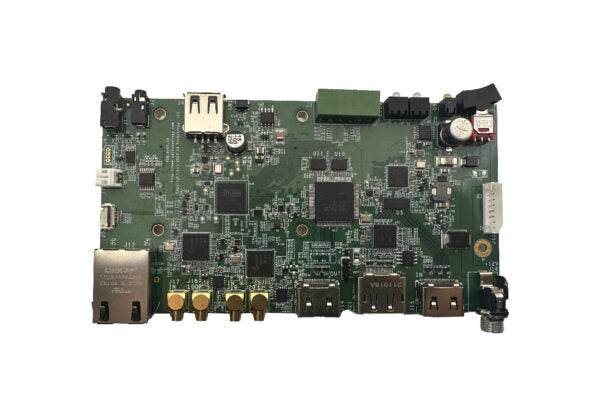

• HE2160-01 Top Angled View

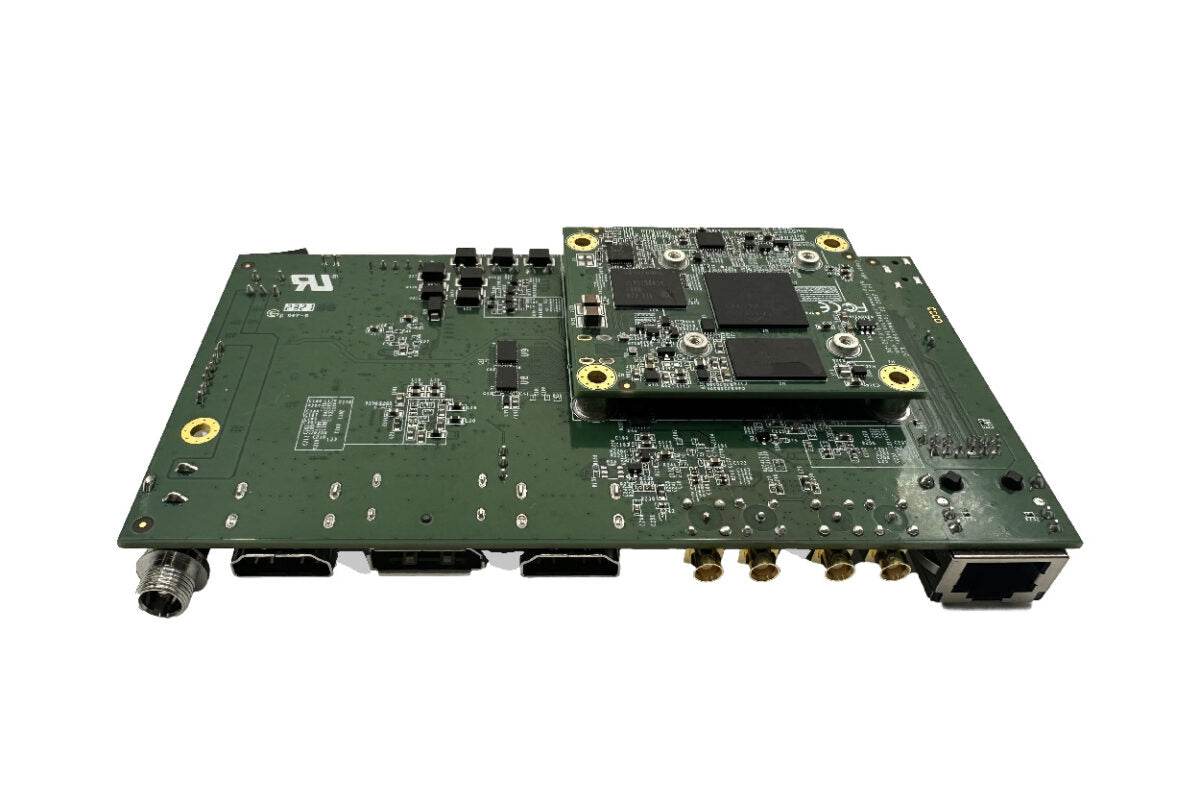

  • HE2160-01 Bottom Angled View
1 2

block-cameras

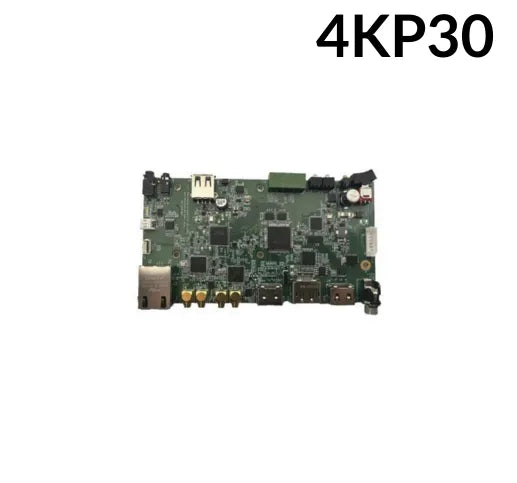

Z3 Technology HE2160 Dual 3G-SDI - 4Kp30 Encoder for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

Z3 Technology HE2160 Dual 3G-SDI - 4Kp30 Encoder for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

SKU: HE2160
Tax included.

HE2160 Spec Sheet

The Z3 Technology HE2160 Dual 3G-SDI Encoder is designed to deliver exceptional video encoding performance for Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV block cameras, enabling seamless integration in industrial, machine vision, and broadcast applications. Featuring H.264 and H.265 compression codecs, the HE2160 supports up to 4Kp30 resolution, ensuring crystal-clear video quality with low latency streaming. This encoder is perfect for environments that demand precision and reliability, such as broadcast, medical imaging, military surveillance, and industrial automation.

With dual 3G-SDI inputs, as well as HDMI and Display Port options, the HE2160 provides versatile connectivity, making it adaptable for various setups. Its low power consumption (6.5W) and compact design (50 x 58mm encoder board) further enhance its suitability for production-ready installations. NDAA compliance ensures this encoder meets stringent cybersecurity standards for secure operations in sensitive environments. The HE2160 supports advanced features such as real-time streaming, AI-ready video processing, and KLV metadata pass-through, making it a versatile choice for critical video applications.

Key features include low-latency streaming, simultaneous streaming and recording, and a variety of output formats like RTSP, RTMP, and SRT, offering flexibility for high-performance video transmission. Its embedded KLV metadata and high-precision timestamps make it ideal for military and surveillance use, with support for Picture-in-Picture mode and stereo SDI pairs. Control the encoder effortlessly via HTTP, API, ONVIF, or SSH/Serial interfaces, and enjoy comprehensive video preview options through the web user interface.

Features:

  • Dual 3G-SDI, HDMI & Display Port Inputs – Versatile connectivity
  • 4Kp30, 1080p60, 1080i60 Support – High-resolution video encoding
  • H.265 & H.264 Compression – Efficient bandwidth usage
  • Low-Latency Streaming – Real-time monitoring capability
  • Simultaneous Streaming & Recording – USB, Micro-SD, NFS storage
  • NDAA Compliant – Cybersecure for sensitive applications
  • AI-Ready Video Processing – Advanced analytics integration
  • Embedded KLV Metadata – MISB 0601/0604 compliant for military & surveillance
  • SRT, RTMP, RTSP, MPEG-2 TS Output – Flexible streaming formats
  • Compact & Low-Power (6.5W, 50x58mm Board) – Ideal for embedded systems

Applications:

  • Broadcast & Live Streaming
  • Medical Imaging
  • Military & Defense
  • Industrial Automation
  • Security & Surveillance


Interfaces • 2x 3G-SDI Input
• 1x HDMI Input
• 1x Display Port Input
Recording USB, Micro-SD, or NFS
Additional Interfaces GbE, Re-clocked SDI loop through, HDMI Passthrough, Audio Input, RS-485, GPIO + UART, RS-232 Serial
Video Codecs H.265, H.264, MJPEG
Encoding Resolutions 4Kp30, 1080p and i080i (up to 60fps), NTSC & PAL, Laptop VESA Modes (up to 85fps)
Output Formats RTP, RTSP, MPEG-2 TS, RTMP, RTMPS and SRT
Features • Low Latency, Low Power
• Cyber Secure Features Available
• Simultaneous streaming and recording
• Record to USB or Network File System
• Control via HTTP web user interface, API, ONVIF or SSH/ Serial
• SRT Modes: Caller Sender, Rendezvous, & Encryption
• Embedded KLV Metadata via SDI or Serial, MISB 0601 Compliant
• High Precision Timestamps Across Multiple Streams, MISB 0604 Compliant
• Picture in Picture Mode Supported or Two Separate Streams
• 4 SDI Stereo Pairs
• Live Video Preview in the Web User Interface
Encoder Board Size 50 x 58mm (1.97 x 2.28 in)
Encoder Board Weight 76 x 142mm (2.99 x 5.59 in)
Power Consumption 6.5W
Power Supply 12V DC
