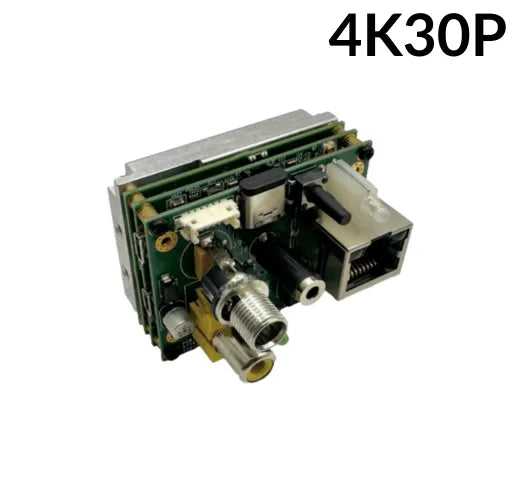

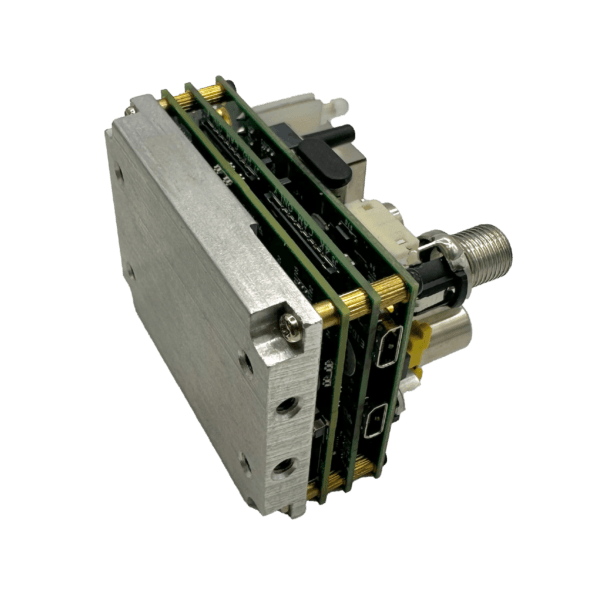

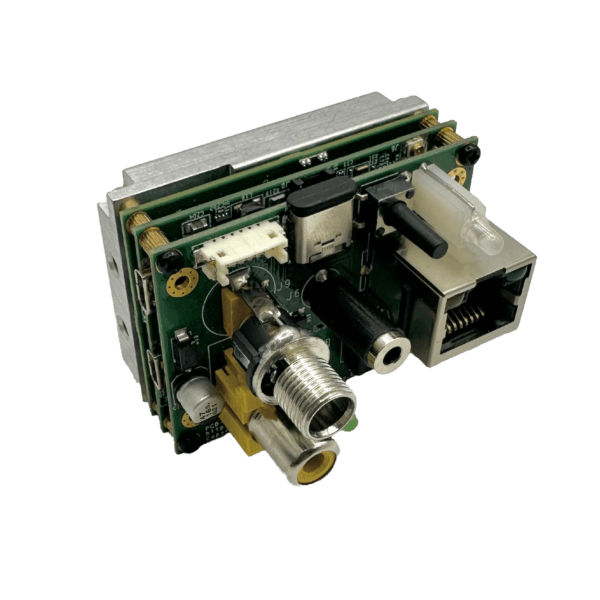

Z3 Technology Q603-10 Compact 4K or LVDS Encoder for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

Z3 Technology Q603-10 Compact 4K or LVDS Encoder for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

SKU: Q603-10
Tax included.

Q603-10 Spec Sheet

The Z3 Technology Q603-10 Compact 4K/LVDS Encoder is designed for Sony FCB-ER9500 & FCB-ER8530 4K block cameras, delivering H.265, H.264, and MJPEG encoding for low-latency, high-quality video streaming. It features Gigabit Ethernet, HDMI (KEL, Micro-HDMI), LVDS, and composite NTSC/PAL inputs, supporting simultaneous streaming and recording to NFS or MicroSD. With an HTTP/HTTPS Web GUI, live video preview, ONVIF Profile S & T compliance, RTSP authentication, and Pelco D PTZ control, it’s ideal for machine vision, surveillance, robotics, and industrial applications.

Engineered for seamless integration, the Q603-10 supports timestamp overlay, NMEA GPS, KLV metadata (MISB 0601 & 0604), and configurable Ethernet speeds (1000 Mbps / 100 Mbps). The Q603-10W variant adds WiFi 802.11am dual-band support for wireless connectivity. With its compact 50 x 40 x 38 mm size, 43g weight, and 12V DC power (5.5W typical), this encoder is a powerful, high-performance solution for aerospace, medical imaging, unmanned systems, and thermal applications.

Features:

  • Compact 50 x 40 x 38 mm, lightweight (43g)
  • 4K/LVDS encoder for Sony FCB-ER9500 & FCB-ER8530
  • Gigabit Ethernet & full-size connectors
  • Multi-input support: LVDS, HDMI (KEL, Micro-HDMI), Composite (NTSC/PAL, RS-170)
  • H.265, H.264, MJPEG encoding
  • Simultaneous streaming & recording (NFS, MicroSD)
  • HTTP/HTTPS Web GUI with live video preview
  • ONVIF Profile S & T, Pelco D PTZ support
  • RTSP authentication & secure video transmission
  • Timestamp, NMEA GPS, & KLV metadata overlay
  • WiFi 802.11am dual-band (Q603-10W model)
  • Configurable Ethernet speed (1000 Mbps / 100 Mbps)
  • Power: 12V DC, 5.5W typical consumption

Applications:

  • Aerospace & industrial inspection
  • Medical imaging & diagnostics
  • Robotics & machine vision
  • Security & surveillance
  • Unmanned systems (UAV, UGV, USV)
  • Thermal imaging solutions


Visible Compatible Cameras Sony FCB-ER9500, FCB-ER8530
Thermal Compatible Cameras Flir Boson® Tau2® DRS Tenum®, Tamarisk® and Composite
Video Codecs H.265, H.264, MJPEG encode
Audio Intefaces  Embedded from HDMI
Audio Codecs HE-AAC, HEv2-AAC, AAC-LC
Interfaces LVDS via KEL, HDMI via KEL, Micro HDMI input Composite Input via u.FL or RCA, HDMI Output, RS-232, RS-485
Output Formats RTSP, UDP, RTP, TSRTP, RTMP, RTMPS, MP4, TS-File
Features • Easy-to-Use HTTPs Web Gui with live video preview
• Send VISCA and IR Camera Controls over IP with Web Gui or HTTPS API
• Simultaneous Streaming and Recording to NFS or MicroSD Card
• ONVIF® Profile S and T Compliant
• Embedded KLV Metadata Support Via Serial, MISB 0601 Compliant
• High Precision Timestamps Across Multiple Streams, MISB 0604 Compliant
• Multiline text Overlay via the Web Gui or the API
• Logo or Image overlay via the API
• NMEA GPS Overlay
• Region of Interest: Configurable Field of View
• Pelco D PTZ Position and ONVIF
• Absolute PTZ Support and PTZ Tours
• WiFi 802.11am dual band 4.33 Mbps with Q603-10W
• Configurable Ethernet Speed 1000 Mbps and 100 Mbps
Encoder Size 50 x 40 x 38 mm
Encoder Weight 43g (heat pipe is an additional 38g)
Power Supply Options 12V DC
Power Consumption 5.5W typical
