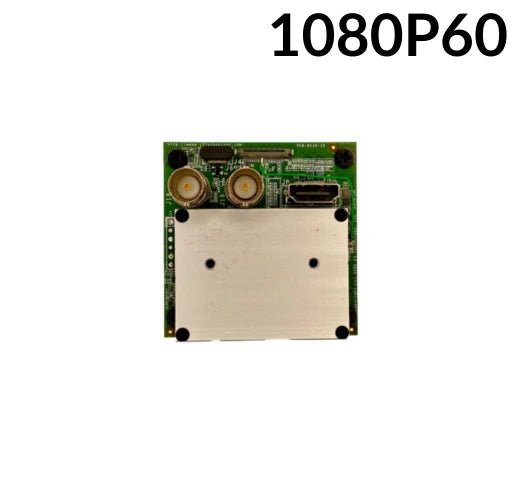

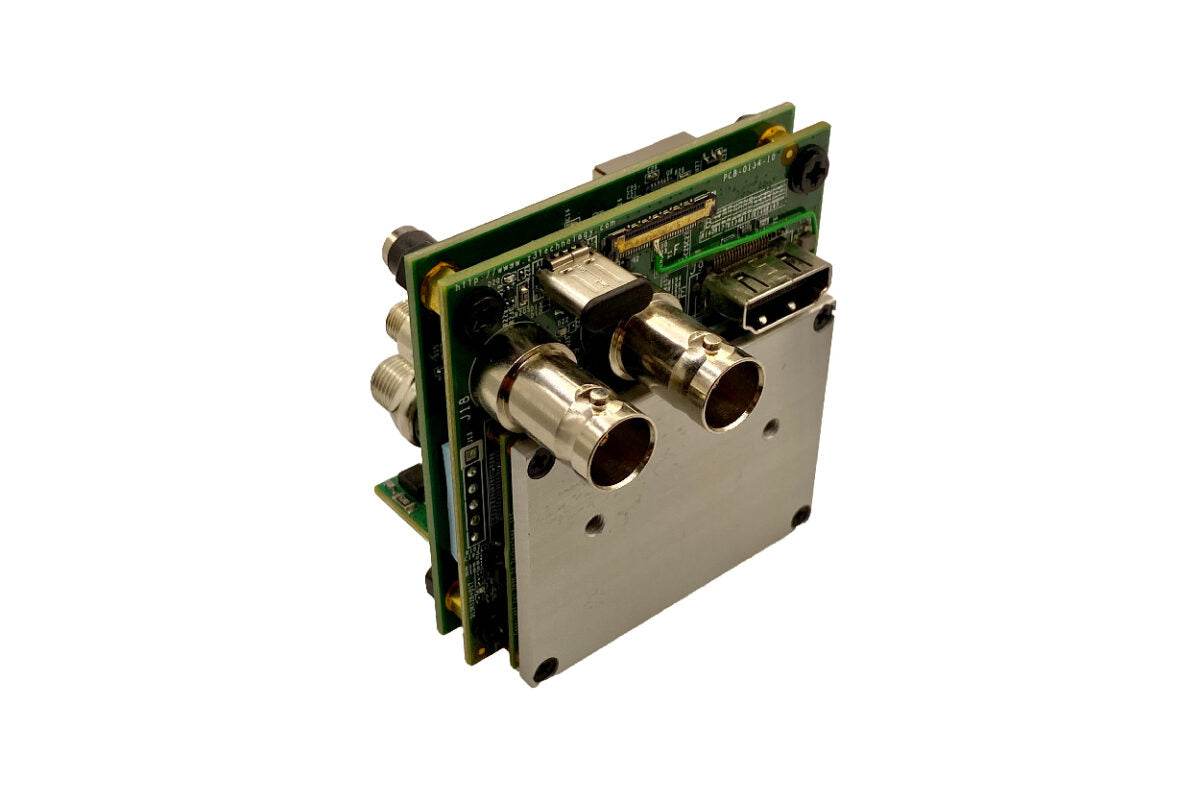

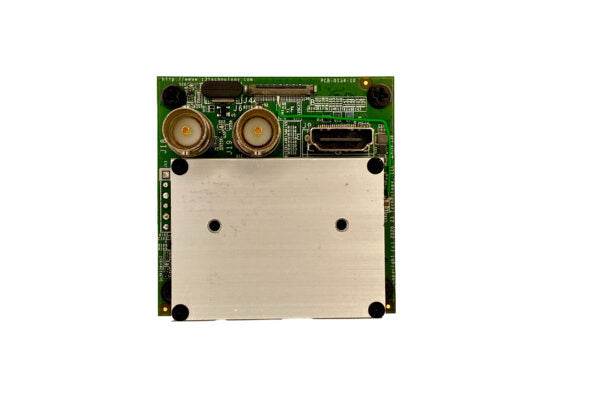

Z3 Technology Q603-SC H.265 3G-SDI Encoder for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

Z3 Technology Q603-SC H.265 3G-SDI Encoder for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

SKU: Q603-SC
Tax included.

Q603-SC Spec Sheet

The Z3 Technology Q603-SC H.265 3G-SDI Encoder is a high-performance, compact video encoder designed for Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV block cameras. Supporting H.265, H.264, and MJPEG encoding, it delivers low-latency, high-quality video streaming at up to 1080p60. With 3G-SDI, Composite, HDMI Out, and Sony LVDS via KEL interfaces, it offers flexible input options, while PoE-enabled Gigabit Ethernet, USB 3.1, and Serial I/O (RS-232/RS-422/RS-485) ensure seamless connectivity. The encoder supports multiple streaming formats (RTP, RTSP, MPEG-2 TS, RTMP, RTMPS) and enables simultaneous streaming and recording to network drives, USB, or Micro SD.

Built for security, industrial automation, and broadcast applications, the Q603-SC integrates with IP-based systems through ONVIF Profile S and T, VISCA camera control over IP, and Pelco D PTZ positioning. Advanced features include SRT encryption, timestamp & KLV metadata support, GPS/NTP data overlay, and an intuitive HTTP/HTTPS web GUI with live preview. With a compact 58 x 58 x 50 mm, 119g design and power options via 12V DC or PoE 802.3af/at, it provides a reliable, high-performance solution for real-time video encoding in demanding environments.

Features:

  • Supports Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV Block Cameras
  • H.265, H.264, and MJPEG encoding for efficient, high-quality video compression
  • 3G-SDI, Composite, HDMI Out, and Sony LVDS via KEL for versatile video input options
  • PoE-enabled Gigabit Ethernet, USB 3.1, RS-232, RS-422, RS-485 Serial I/O for flexible connectivity
  • 1080p60, 720p, NTSC/PAL, VGA, CIF, and QVGA resolutions
  • Multiple streaming formats: RTP, RTSP, MPEG-2 TS, RTMP, RTMPS
  • Simultaneous streaming and recording to network drives, USB, or Micro SD
  • ONVIF Profile S and T compliance for IP surveillance integration
  • VISCA camera control over IP & Pelco D PTZ positioning
  • SRT encryption and multiple SRT modes: Caller, Sender, Rendezvous
  • Timestamp & KLV metadata support, GPS/NTP data overlay
  • Low-latency, low-power operation with compact 58 x 58 x 50 mm, 119g design
  • Easy-to-use HTTP/HTTPS web GUI with live video preview
  • Power options: 12V DC or PoE 802.3af/at

Applications:

  • Security and surveillance systems
  • Industrial monitoring and control
  • Automated inspection and quality control
  • Remote machine vision and data collection
  • Real-time process monitoring
  • Broadcast and live streaming services
  • Environmental and facility surveillance
  • Unmanned aerial vehicle (UAV) and robotics applications
Interfaces 3G-SDI in, Composite in, HDMI Out, Sony LVDS via KEL, POE enabled Gigabit Ethernet, USB 3.1, Audio Input, RS-232, Serial I/O (RS-232, RS-422, RS-485
Video Codecs H.265, H.264, MJPEG
Encoding Resolutions 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA
Output Formats RTP, RTSP, MPEG-2 TS, RTMP, and RTMPS
Features • Easy-to-Use HTTP/HTTPS web GUI with live video preview
• Low Latency + Low Power
• Pass VISCA™ Camera Control Commands over IP
• ONVIF® Profile S and T
• Simultaneous Stream and Record
• Overlay of GPS or NTP Data
• Pelco D PTZ Positioning
• Absolute PTZ Support
• Compatible with ZEUS® DMD-4K Video Decoder
• Timestamp and KLV support through overlay or SEI data
• SRT Modes Supported: Caller, Sender, Rendezvous & SRT Encryption
Encoder Board Size 58 x 58 x 50 mm
Encoder Board Weight 119g
Power Input 7.5V to 16V DC, 12V DC typ.
Power Supply 12V DC or POE 802.3af/at at class 0
