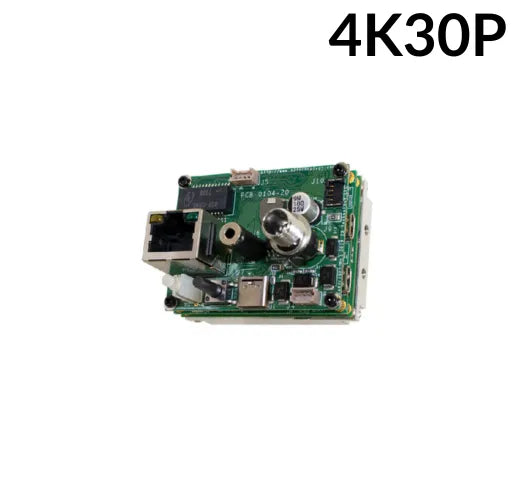

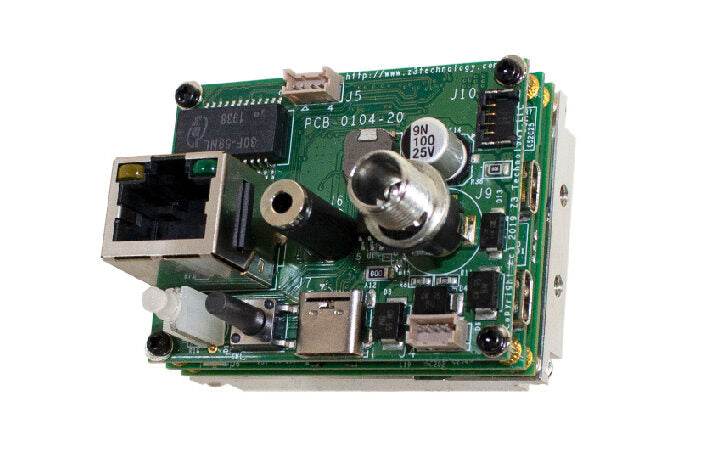

Z3 Technology Z3-Q603-RPS H.265 Video Encoder Board for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

Z3 Technology Z3-Q603-RPS H.265 Video Encoder Board for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

SKU: Z3-Q603-RPS
Tax included.

Z3-Q603-RPS Spec Sheet

The Z3 Technology Z3-Q603-RPS is a high-performance H.265/HEVC video encoder board, designed for seamless integration with Sony FCB-ER9500 & FCB-ER8530 4K block cameras. Powered by the Qualcomm QCS603 quad-core processor (1.6GHz + 1.7GHz) with Snapdragon Neural Processing Engine, this compact 50 x 40 x 38 mm module delivers low-latency video encoding up to 4Kp30 in H.265, H.264, and MJPEG formats.

The board supports multiple video inputs, including Micro-HDMI 1.4 (4Kp30), LVDS via KEL connector, and Composite Video, with output over Micro-HDMI 1.4. It enables real-time streaming via RTP, RTSP, MPEG-2 TS over UDP, RTMP, TSRTP, MPTS, and TS file formats.

Key connectivity features include Gigabit Ethernet, RS-232, RS-485, WiFi 802.11ac (433 Mbps), Bluetooth 5.0, and ONVIF® Profile S & T compliance. The onboard HTTP-based control interface allows full parameter adjustments, including resolution, bitrate, GOP, and real-time bitrate control.

Power-efficient at 5W typical consumption, the encoder supports multiple power options: USB Type-C, 12V DC, and a 1-cell Li battery with onboard charging. Compact and lightweight (43g, plus 58g with heat sink), it's ideal for UAVs, drones, security, remote monitoring, and video conferencing applications.

Features:

  • H.265/HEVC, H.264, MJPEG encoding – Supports up to 4Kp30 with multi-stream capability
  • Low-latency video processing – Optimized for real-time applications
  • Multiple video inputsMicro-HDMI 1.4 (4Kp30), LVDS (KEL connector), Composite Video
  • Gigabit Ethernet, WiFi 802.11ac (433 Mbps), Bluetooth 5.0 – High-speed connectivity options
  • ONVIF® Profile S & T compliant – Seamless integration with security and surveillance systems
  • HTTP-based control interface – Adjust resolution, bitrate, GOP, and real-time bitrate control
  • Multi-protocol streaming support – RTP, RTSP, MPEG-2 TS, RTMP, TSRTP, MPTS, TS file
  • Compact and lightweight design50 x 40 x 38 mm, 43g (plus 58g heat sink)
  • Multiple power optionsUSB Type-C, 12V DC, 1-cell Li battery (onboard charger)
  • 5W typical power consumption – Energy-efficient operation

Applications:

  • UAVs & Drones
  • Security & Surveillance
  • Remote Monitoring
  • Video Conferencing
  • Inspection & Robotics
  • Custom Video Solutions


Processor

Qualcomm QCS603 system on chip processor, Quad core Arm v8, two cores at 1.6 GHz, two at 1.7 GHz, Snapdragon neural processing engine, Adreno 615 graphics at 780 MHZ

Video Inputs

HDMI 1.4 from Micro-HDMI jack at up to 4Kp30
LVDS from KEL connector, KEL connector for 4K cameras
Composite Video

Video Output

HDMI 1.4 on Micro-HDMI

Video Codecs

H.265, H.264, MJPEG encode

Audio Intefaces

Embedded from HDMI

Audio Codecs

HE-AAC, HEv2-AAC, AAC-LC

Interfaces

Sony 4K Camera KEL Input         Aux Power In/Out

LVDS HD Camera KEL Input        Gigabit Ethernet

HDMI 1.4 Input                          UART

HDMI 1.4 Output                        Serial RS-232

Composite Video In                    RS-485

Bluetooth 5.0                             WiFi 802.11am dual band 433 Mbps

Operating System

Embedded Linux (root file-system, NAND boot, tool chain and flash programming tool) u-boot

Encoding Resolutions

H.265 video encode at up to 4K, 30fps with multi-stream support

Output Formats

RTP, RTSP, MPEG-2 TS over UDP, RTMP, TSRTP, MPTS and TS file

Features

• Low Latency
• ONVIF® Profile S & T Compliant
• Easy-to-Use HTTP-Based Control Interface
• Fully controllable parameters; resolution, max bitrate, GOP and on the fly bitrate control
• WiFi 802.11ac dual band 4.33 Mbps
• Bluetooth 5.0
• Zixi Feeder Enabled

Encoder Size

50 x 40 x 38 mm

Encoder Weight

43g (heat pipe and heat sink is an additional 58g)

Power Supply Options

1-cell Li battery (on board charger)

USB Type-C bus power

12V DC

Power Consumption

5W typical
