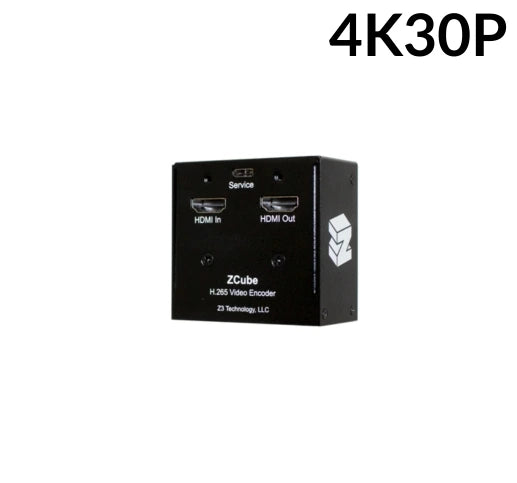

Z3 Technology ZCube-21 Full-Size HDMI 4Kp30 H.265 Encoder for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

Z3 Technology ZCube-21 Full-Size HDMI 4Kp30 H.265 Encoder for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

SKU: ZCube-21
Tax included.

ZCube-21 Spec Sheet

The Z3 Technology ZCube-21 HDMI 4Kp30 H.265 Encoder is designed for high-performance video streaming, perfectly compatible with the Sony FCB-ER9500 and FCB-ER8530 4K block cameras. This compact encoder excels in industrial and machine vision applications by offering ultra-low latency, minimal power consumption, and robust encoding capabilities for demanding environments. Supporting 4Kp30, 1080p, and 720p resolutions, the ZCube-21 provides simultaneous H.265/HEVC and H.264 encoding, allowing flexible and high-quality video streams.

Equipped with Power over Ethernet (PoE) support (802.3af), it offers simplified installation with fewer cables and is ideal for remote and energy-efficient operations. Users can control and configure the device via an intuitive HTTP/HTTPS web GUI, with real-time video preview for seamless monitoring and setup. The encoder’s versatile I/O options include HDMI In/Out, Gigabit Ethernet, USB 3.1, RS-232, and serial ports, allowing integration into various systems.

It supports a wide range of output formats including RTP, RTSP, MPEG-2 TS, RTMP, RTMPS, and SRT, making it highly adaptable for streaming and recording applications. Whether for surveillance, automated manufacturing, or remote monitoring, the ZCube-21 offers robust, secure, and high-quality video encoding performance.

Features:

  • Ultra-low latency, low power consumption
  • Dual codec support: H.265/HEVC and H.264 encoding
  • HDMI In/Out, Gigabit Ethernet, USB 3.1 interfaces
  • PoE (802.3af) support for efficient power delivery
  • Supports 4Kp30, 1080p, and 720p encoding resolutions
  • Multiple streaming formats: RTP, RTSP, MPEG-2 TS, RTMP, RTMPS, SRT
  • Control via HTTP/HTTPS, ONVIF, SSH, or Serial
  • Live video preview and real-time streaming
  • Record video to USB or network storage
  • Compatible with Sony FCB-ER9500 and FCB-ER8530 block cameras

Applications:

  • Industrial video surveillance
  • High-resolution video capture in manufacturing
  • Remote monitoring in hazardous environments
  • Quality control in production lines
  • Video communication for industrial robotics
  • Advanced video analytics in machine vision systems

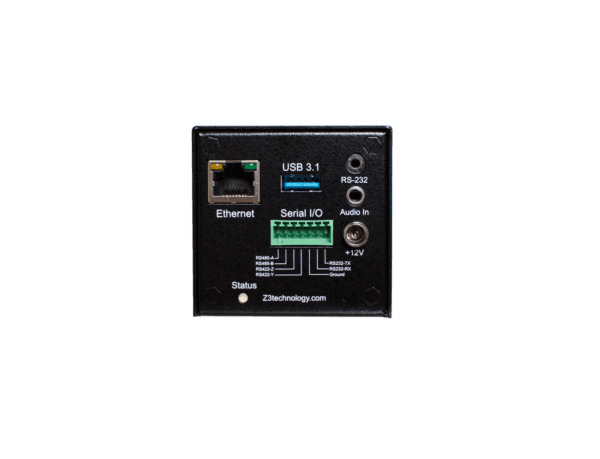

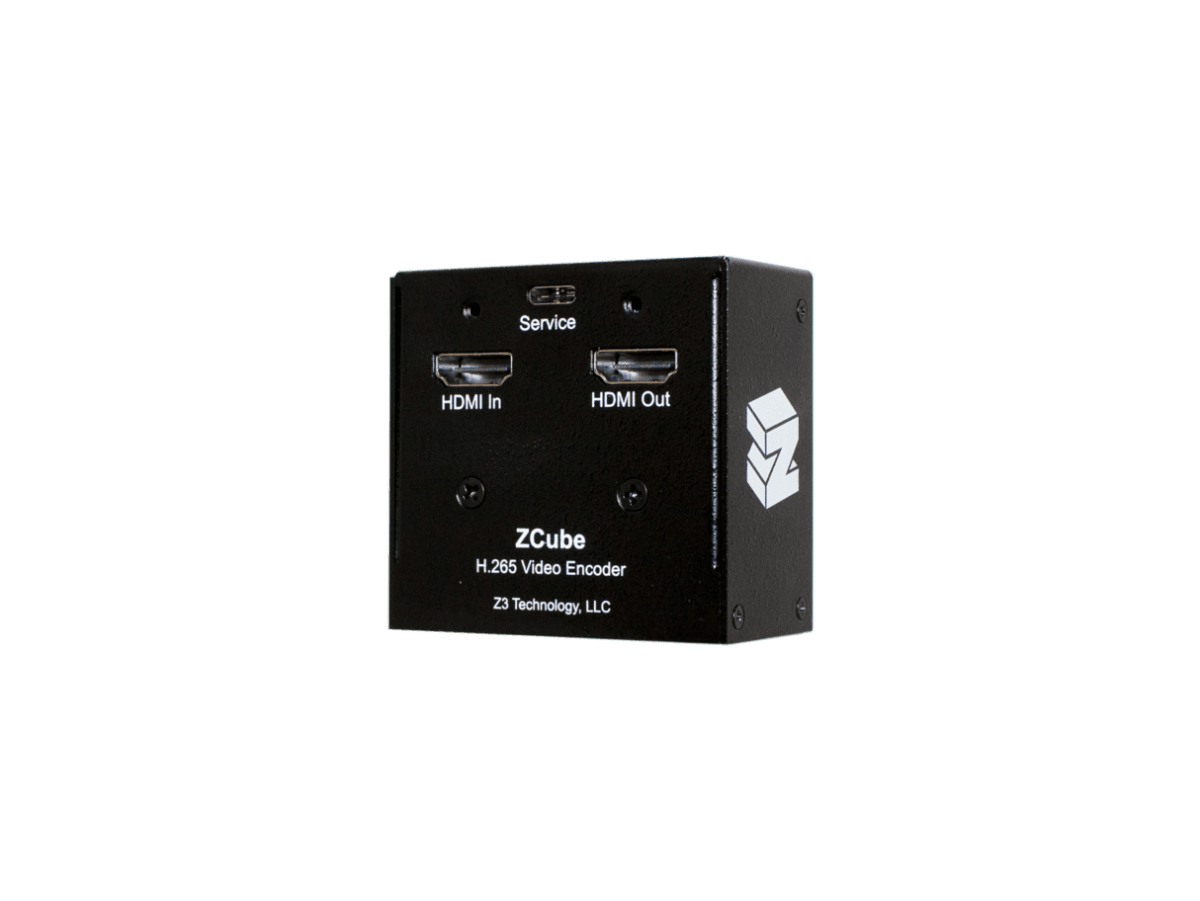

Interfaces Locking HDMI Input, Locking HDMI Output, PoE, Gigabit Ethernet, USB 3.1, Mic Line Level Audio Input, RS-232, Serial I/O (RS-485, RS-422, RS-232)
Video Codecs H.265/HEVC, H.264 and MJPEG
Encoding Resolutions 4Kp30, 1080p and 720p (up to 60fps) Laptop Vesa Modes (up to 85fps)
Output Formats RTP, RTSP, MPEG-2 TS, RTMP, RTMPS, and SRT
Streaming •Simultaneously stream & record each channel
•Send up to 3 simultaneous streams
•When using 3 streams max resolution of each stream is 1080p30
•When using 2 streams max resolution of each stream is 1080p60
•When using 1 stream max resolution is 2160p30
Features •Low latency, Low Power
•Cyber Secure Features Available
•Simultaneous encode of H.265/HEVC and H.264
•Control via HTTP/HTTPS web GUI, API, ONVIF or SSH/ Serial • Live Video Preview
•Record to USB or Network File System
•SRT Modes Supported: Caller Sender, Rendezvous, and SRT Encryption
ZCube Size 32 x 62 x 58 mm (1.3 x 2.4 x 2.3 in)
ZCube Weight 153g
ZCube Power Input 7.5V to 16V DC, 12V DC typ.
