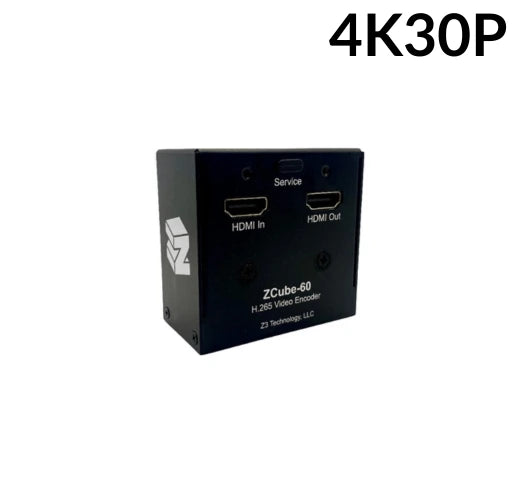

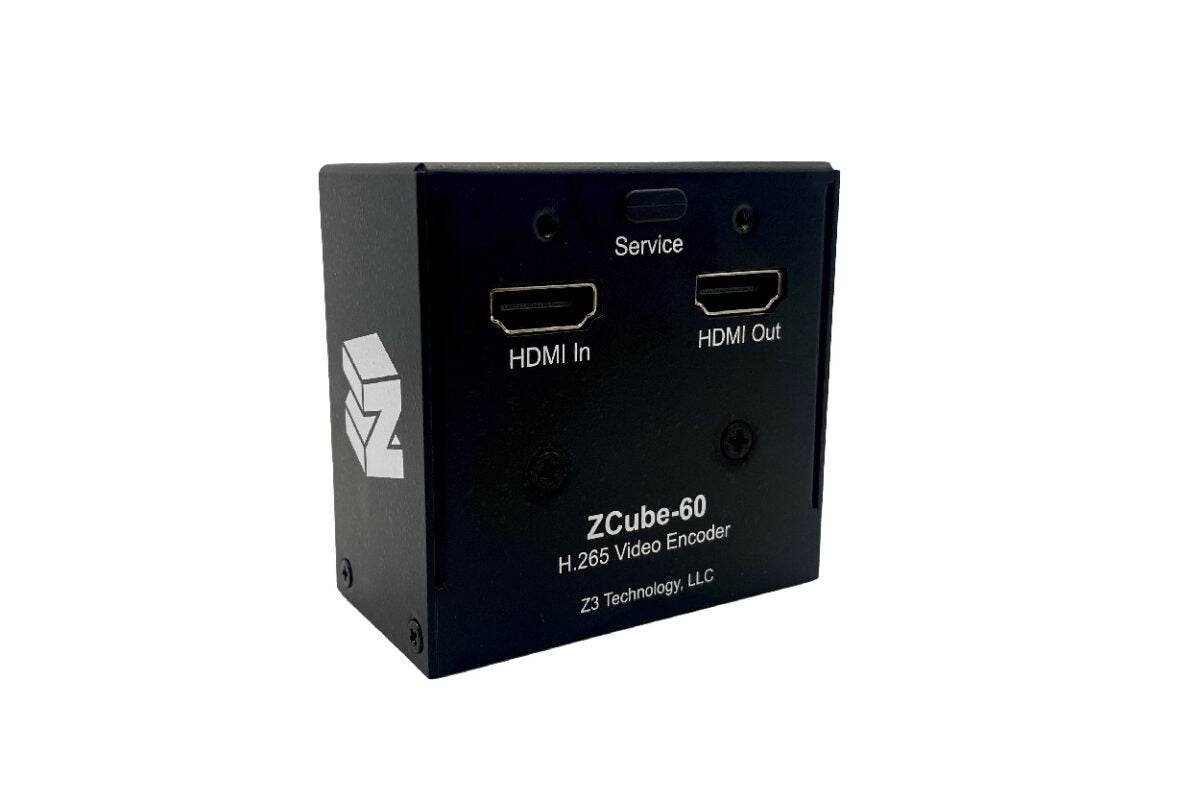

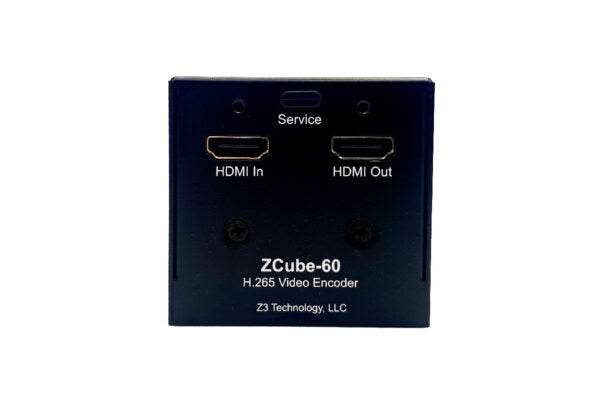

Z3 Technology ZCube 4K Ultra Compact H.265 Encoder for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

Z3 Technology ZCube 4K Ultra Compact H.265 Encoder for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

SKU: ZCube
Tax included.

ZCube Spec Sheet

The Z3 Technology ZCube 4K Ultra Compact H.265 Encoder delivers high-performance, low-latency video encoding for Sony FCB-ER9500 and FCB-ER8530 4K block cameras. Supporting H.265/HEVC, H.264, and MJPEG codecs, it encodes video resolutions up to 4Kp30 with simultaneous streaming and recording capabilities. Featuring Gigabit Ethernet, Micro HDMI input, USB 2.0, audio input, and RS-232, the ZCube provides flexible connectivity for industrial, medical, and security applications.

Optimized for efficiency, the ZCube supports multiple output formats, including RTP, RTSP, MPEG-2 TS, RTMP, RTMPS, and SRT with encryption. It enables up to three simultaneous streams, with a maximum resolution of 2160p30 when using two streams. Low-power operation (~4W at 4Kp30) and Power over Ethernet (PoE) make it ideal for continuous use in demanding environments. Its compact 66 x 66 x 66 mm design ensures seamless integration into space-sensitive applications.

Features:

  • H.265/HEVC, H.264, and MJPEG encoding – High-quality, low-bandwidth video compression
  • 4K UHD & HD up to 30 fps – Supports 2160p, 1080p, and 720p resolutions
  • Low latency, low power (~4W at 4Kp30) – Optimized for real-time streaming
  • Simultaneous multi-streaming & recording – Up to 3 streams (max 2160p30 & 1080p30 for 2 streams)
  • Multiple output formats – RTP, RTSP, MPEG-2 TS, RTMP, RTMPS, SRT with encryption
  • Comprehensive connectivity – Micro HDMI input, Gigabit Ethernet, USB 2.0, audio input, RS-232
  • PoE-enabled & 7.5V–16V DC input – Flexible power options for continuous operation
  • Compact design (66 x 66 x 66 mm, 306g) – Ideal for space-constrained applications
  • Easy-to-use HTTP/HTTPS web GUI – Remote control with live video preview
  • Compatible with ZEUS® DMD-4K Decoder – Seamless system integration

Applications:

  • Industrial machine vision
  • Medical imaging & telemedicine
  • Security & surveillance
  • Manufacturing quality control
  • Remote inspection & diagnostics
  • Live streaming & broadcasting

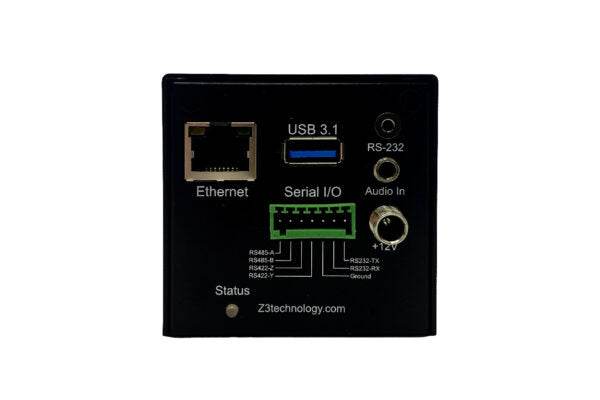

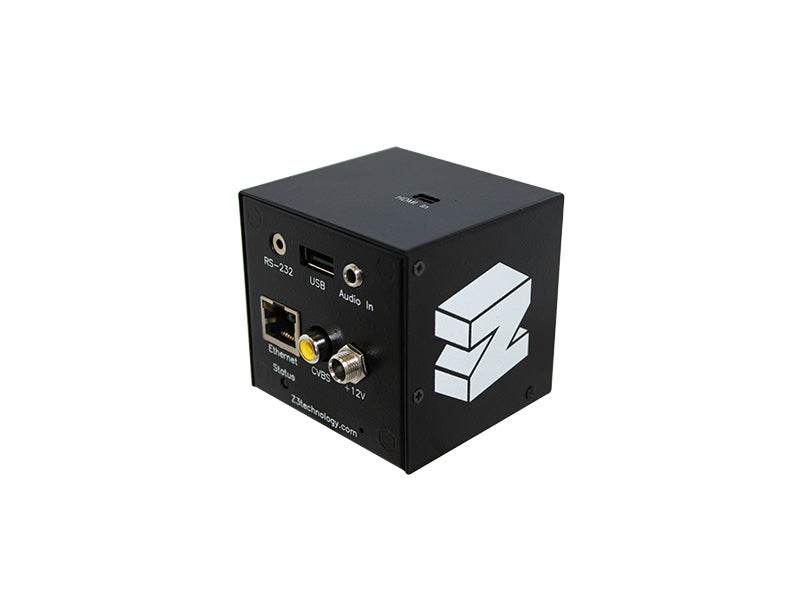

Interfaces Micro HDMI Input, Gigabit Ethernet, USB 2.0, Audio Input, RS-232, Composite Output
Video Codecs H.265/HEVC, H.264 and MJPEG
Encoding Resolutions 4K UHD & HD up to 30 fps(2160p, 1080p, 720p & lower)
Output Formats RTP, RTSP, MPEG-2 TS, RTMP, RTMPS, and SRT
Streaming •Simultaneously stream & record each channel
•Send up to 3 simultaneous streams
•When using 3 streams max resolution of each stream is 720p30
•When using 2 streams max resolution of each stream is 2160p30 & 1080p30
Features •Low latency, Low Power
•Simultaneous encode of H.265/HEVC and H.264 Features Specifications
•SRT Modes Supported: Caller, Sender, Rendezvous & SRT Encryption
•Easy-to-Use HTTP/HTTPS web GUI with live video preview
•Power over Ethernet (PoE)
•Compatible with the ZEUS® DMD-4K Decoder
ZCube Size 66 x 66 x 66 mm
ZCube Weight 306g
ZCube Power Input 7.5V to 16V DC, 12V DC typ.
Power Consumption Typical about 4W at 4Kp30
