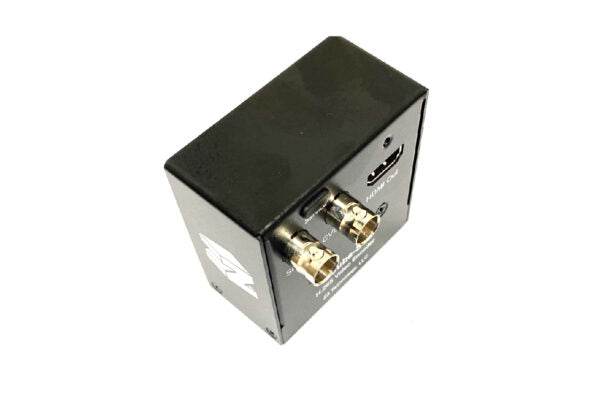

Z3 Technology ZCube-SC H.265 3G-SDI Encoder for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

Z3 Technology ZCube-SC H.265 3G-SDI Encoder for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

SKU: ZCube-SC
Tax included.

ZCube-SC Spec Sheet

The Z3 Technology ZCube-SC H.265 3G-SDI Encoder is a high-performance, compact solution for real-time video streaming and remote camera control over IP. Designed for industrial, surveillance, and machine vision applications, it supports Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV block cameras. Featuring H.265/H.264/MJPEG encoding, it efficiently compresses video while maintaining high quality. Accepting 3G-SDI input at 1080p60, it outputs IP streams over Gigabit Ethernet with support for RTP, RTSP, MPEG-2 TS, RTMP, SRT, and more. ONVIF® Profile S & T compliance ensures seamless integration with security and monitoring systems.

Equipped with USB 3.1, HDMI output, composite input, RS-232, and POE, the encoder allows for flexible deployment. Low-latency streaming, simultaneous streaming & recording, GPS timestamp support, and compatibility with ZEUS® video decoders make it a powerful tool for professional-grade video applications. With a compact 65 x 61 x 50 mm form factor and low 4.5W power consumption, the ZCube-SC is ideal for mobile and embedded systems. Power input options include 12V DC or POE 802.3af/at, with an operating temperature range of -5°C to +60°C, ensuring reliability in demanding environments.

Features:

  • Supports Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV block cameras
  • H.265/H.264/MJPEG video encoding for efficient compression and high-quality streaming
  • 3G-SDI input supporting 1080p at 60fps for high-definition video transmission
  • Gigabit Ethernet for IP streaming with RTP, RTSP, MPEG-2 TS, RTMP, SRT, and more
  • ONVIF® Profile S & T compliance for seamless security and surveillance integration

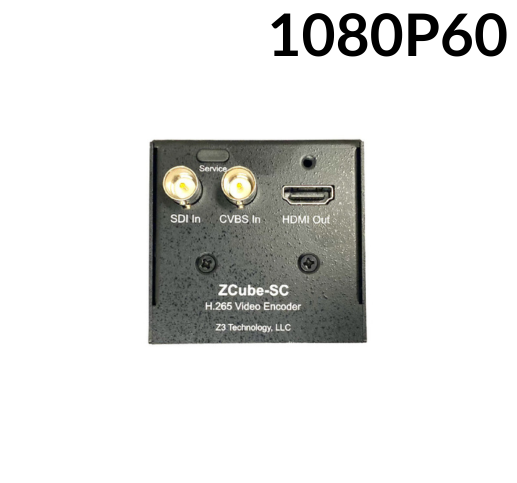

  • USB 3.1, HDMI output, Composite input, RS-232, POE (802.3af/at) for flexible connectivity
  • Simultaneous streaming & recording with USB or network storage (NFS)
  • Low latency, low power (4.5W at 1080p60) for efficient performance
  • Live video preview via Web User Interface for real-time monitoring
  • SRT support with Caller Sender, Rendezvous, and encryption options
  • GPS timestamp overlay & KLV metadata support for advanced tracking applications
  • Compact design (65 x 61 x 50 mm, 169g) for portable and embedded systems
  • Power input: 7.5V to 16V DC, 12V DC typical, or POE 802.3af/at
  • Operating temperature: -5°C to +60°C, suitable for industrial environments

Applications:

  • IP streaming
  • High-definition video surveillance
  • Security monitoring systems
  • Machine vision applications
  • Remote camera control and monitoring
  • Embedded video encoding
  • Integration with ONVIF-compliant VMS



Encoder Modes 3G-SDI or Composite
Camera Formats 3G-SDI, NTSC/PAL/RS170*
Recording USB and NFS

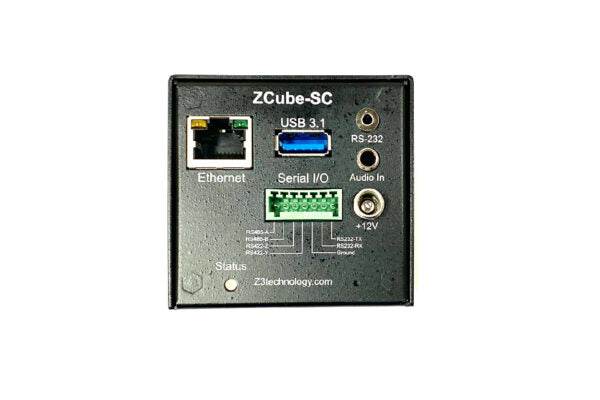

Additional Interfaces  GbE, Audio Input, RS-232, HDMI Output, POE, and Serial I/O (RS232, RS422 and RS485)
Video Codecs H.265, H.264, MJPEG
Encoding Resolutions 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA
Output Formats RTP, RTSP, MPEG-2 TS, RTMP, TS-File, MP4, TS-RTP, SRT and RTMPS
Features • Low Latency, Low Power
• Live Video Preview in the Web User Interface
• Simultaneous Stream and Record Features Specifications
• SRT Modes Supported: Caller Sender, Rendezvous and    SRT Encryption
• Timestamp or GPS support through overlay or SEI data
• Synchronous and Asynchronous KLV Metadata Support
• Compatible with ZEUS® Video Decoders
• Locking HDMI Connection
Product Size 65 x 61 x 50 mm
Product Weight 169g
Power Input 7.5V to 16V DC, 12V DC typ.
Power Consumption Typical about 4.5W at 1080p60
Power Supply  12V DC or POE 802.3af/at at class 0
Operating Temperature  -5°C to +60°C
